CRDi Injectors Coding

1 Bosch EDC16C39 & EDC17 Injector calibration

Image Unavailable

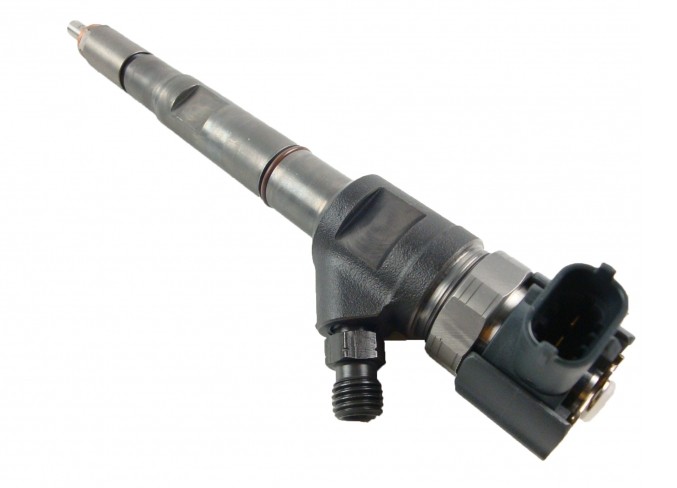

Each injector has calibration number lasered to the top side of the injector.

The calibration number consists of 7 numbers or letters (e.g. “CFLKN2I”).

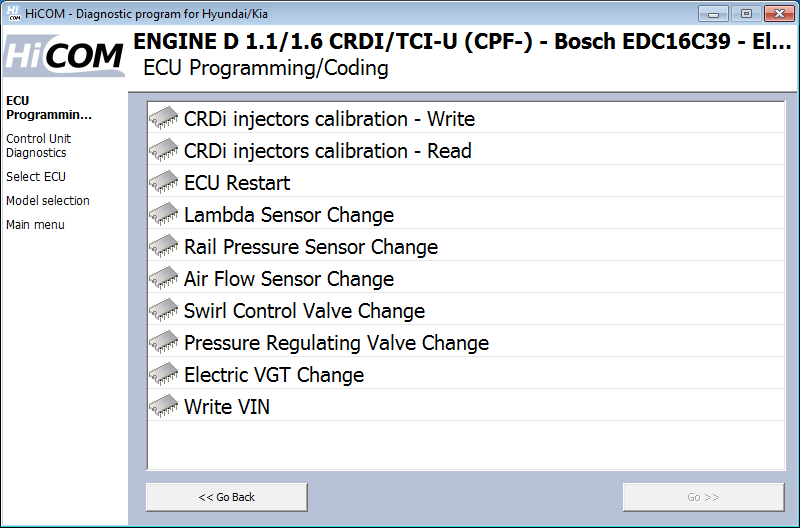

CRDi injector calibration is available in “ECU Programming/Coding” menu after connecting to diesel engine control unit.

Image Unavailable

Image Unavailable

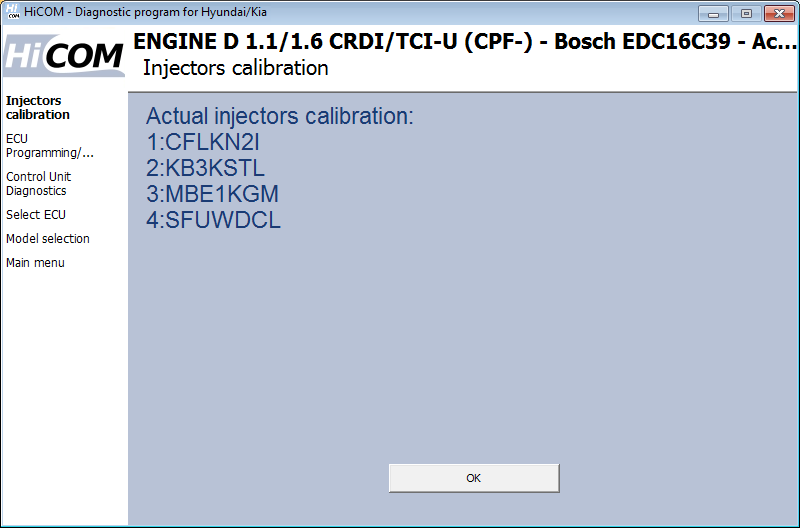

Current injector configuration can be read using „CRDi injector calibration – Read” function. This function is safe to use. It does not change any values.

Displayed calibration numbers should match calibration numbers of injectors installed in the vehicle.

We recommend reading and storing original values before calibrating of new injectors.

Image Unavailable

For calibration of new injectors, use „CRDi injector calibration – Write” function.

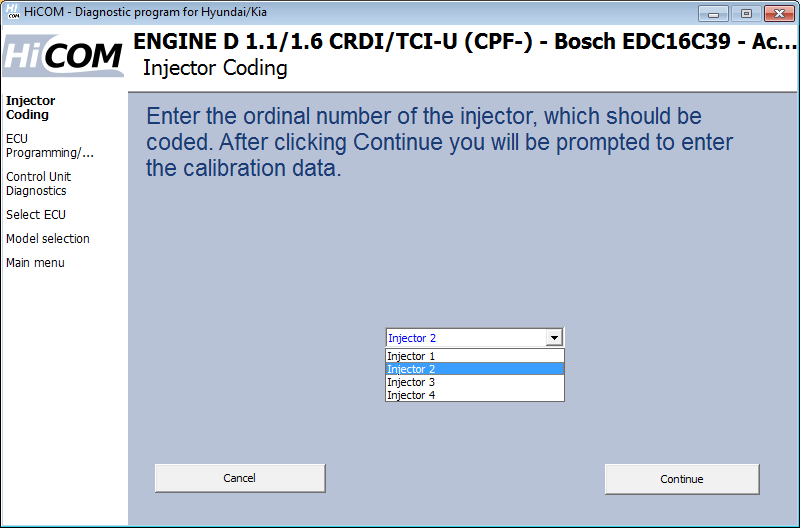

Injectors are calibrated one-by-one. First you are asked for ordinal number of injector (1..4 for 4-cylinder engine, 1..5 for 5-cylinder, 1..6 for 6-cylinder) to calibrate.

Image Unavailable

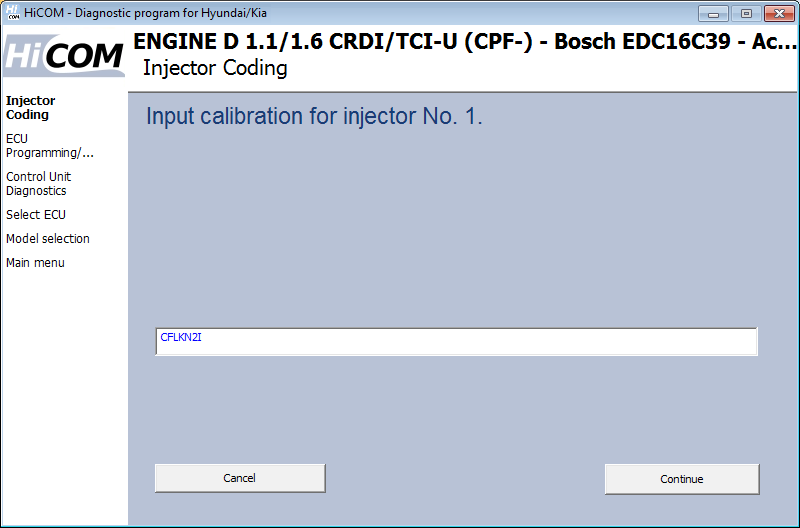

Then enter correct 7-digit calibration number.

Verify successful operation by reading back injectors calibration.

2 Delphi injector calibration

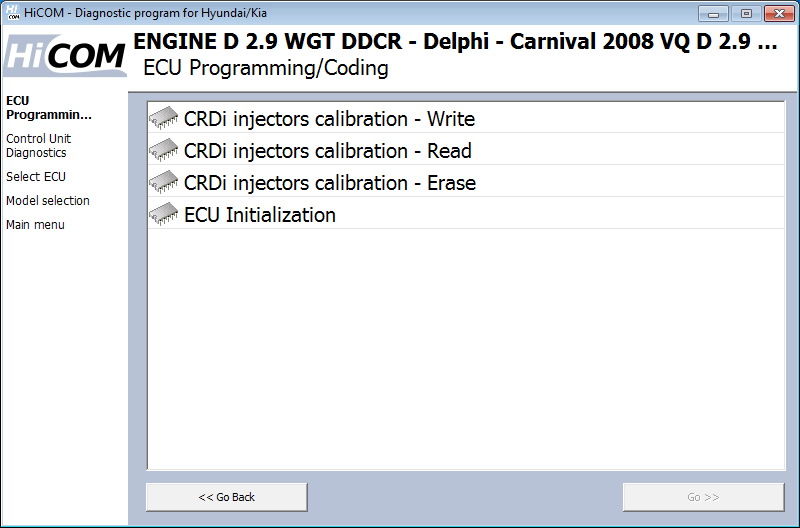

Calibration procedure for Delphi injectors is same as for Bosch. There is just one additional function in “ECU Programming/Coding” menu, the "CRDi injectors calibration – Erase" function, that is used to erase current injectors calibration data.

Image Unavailable


Delphi injectors have different format of calibration numbers than Bosch injectors:

Image Unavailable

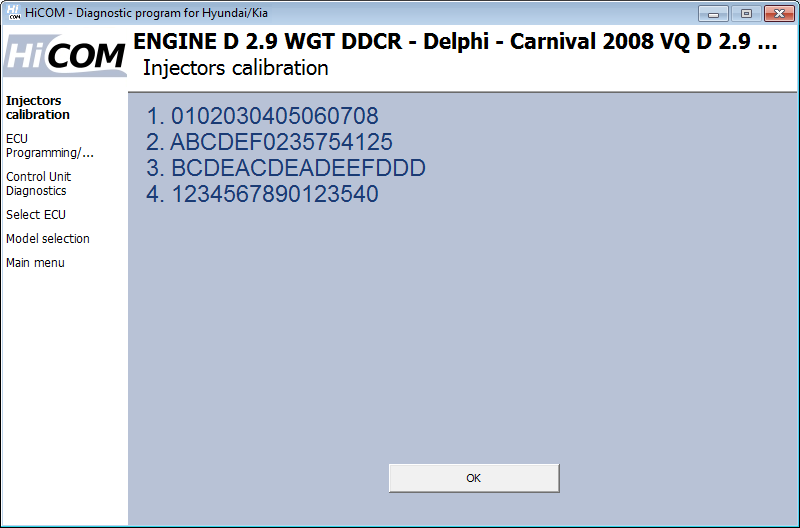

Example of calibration numbers entered in Delphi DDCR control unit on KWP2000 bus. For each injector is entered 16-digit calibration number, containing letters and digits.

Image Unavailable

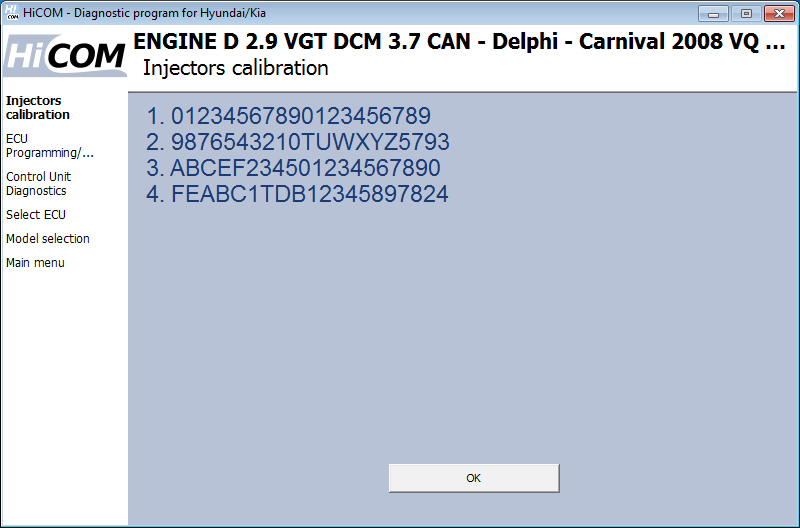

Example of calibration numbers entered in Delphi DCM control unit on CAN bus. For each injector is entered 20-digit calibration number, containing letters and digits.
