Hyundai/Kia key teaching

SMARTRA introduction

Image Unavailable

The SMARTRA stands for SMARt TRansponder Antenna. The SMARTRA unit contains an integrated inductive antenna and electronics around the ignition lock assembly.

The SMARTRA does not carry out the check of validity of transponder or the calculation of encryption algorithm. This device is only an advanced interface, which converts the RF data flow (radio frequency of 125 kHz) of transponder into serial communication to ECM and vice versa. The SMARTRA communicates to a engine control module via a dedicated communications line (called W-Line, or Immo-Line). During communication of ECM and SMARTRA the K line of ECM cannot be used for communication. The ECM controls the communication either to SMARTRA or diagnostic equipment on K line by switching of a multiplexer and specific communication procedures. The multiplexer is a part of ECM hardware.
The immobilizer system consists of the ECM, the SMARTRA, the lamp and ignition keys with built-in transponder. The ECM carries out the check of ignition key by special encryption algorithm, which runs in the transponder and in the ECM in parallel. Only if the results are equal the engine can be started. The data of all transponder, which are valid for the vehicle, are stored in the ECM.
During the key teaching procedure the transponder will be programmed with vehicle specific data. The vehicle specific data are written into the transponder memory.

PIN codes

PIN code stands for of Product Identification Number code. The PIN code is a unique code for each vehicle and it is programmed into ECM at production line.

Image Unavailable

PIN code is needed when the teaching new ECM and new keys, e.g.

  1. When a new key is added
  2. When replacing with new ECM or used ECM (neutralized ECM)
  3. When a key is lost and needs to be deleted

If you enter incorrect pin 3 times the immobilizer (SMARTRA or Smart key) will lock In order to unlock:

  • For mechanical keys leave key on for 1 hour.
  • For smart key (proximity) leave car alone with good battery charge for 1 hour.

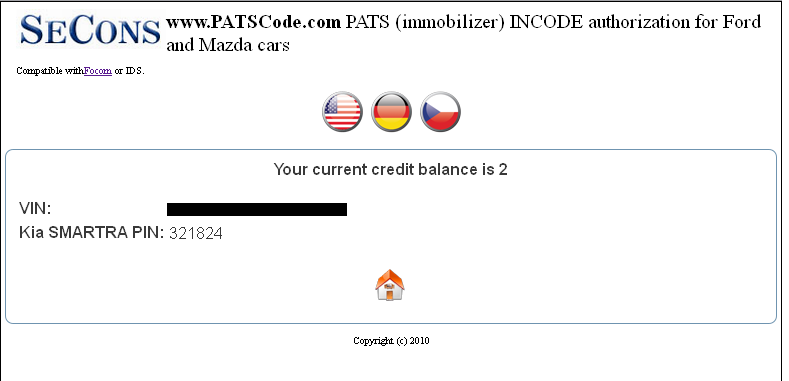

Vehicle PIN code can be obtained through www.PATSCode.com service or through Hyundai dealer.

Supported vehicles

Following list shows all vehicles for which is key teaching supported:

Manufecture Model Production Manufacture Model Production
Dodge Atos 2000-2004 Hyundai i10 2008-2011
Hyundai Accent 2000-2011 Hyundai i20 2009-2011
Hyundai Amica 2000-2004 Hyundai i30 2008-2011
Hyundai Atos Prime 2000-2004 Hyundai i40 2012
Hyundai Atos 2002-2009 Hyundai i45 2011
Hyundai Atoz 2000-2004 Hyundai i800 2002-2009
Hyundai Azera 2006-2012 Hyundai ix20 2011
Hyundai Centennial 2010-2012 Hyundai ix35 2010-2011
Hyundai Elantra Neos 2008-2011 Hyundai ix55 2007-2011
Hyundai Elantra 2001-2012 Inokom Atos 2000-2004
Hyundai Equus 2010-2012 Kia Borrego 2009-2010
Hyundai Genesis Coupe 2009-2011 KIa Cadenza 2010-2011
Hyundai Genesis 2009-2012 Kia Carens 2003-2010
Hyundai Getz 2003-2011 Kia Carnival 2002-2011
Hyundai Granduer 2006-2012 Kia Ceed 2006-2010
Hyundai H-1 Bus 2008-2011 Kia Cerato 2003-2010
Hyundai H-1 2002-2009 Kia Forte 2009-2010
Hyundai H-200 2002-2009 Kia K2500 2005-2010
Hyundai HD Coupe 2002-2008 Kia K2700 2005-2010
Hyundai Liberto 2002-2009 Kia K3000 2005-2010
Hyundai Matrix 2002-2011 Kia K3000S 2005-2010
Hyundai Santafe 2001-2011 Kia Magentis 2006-2010
Hyundai Santro Xing 2000-2004 Kia Mohave 2004-2010
Hyundai Santro 2000-2004 Kia Opirus 2004-2010
Hyundai Satellite 2002-2009 Kia Optima 2006-2010
Hyundai Solaris 2011 Kia Picanto 2003-2010
Hyundai Sonata 2005-2011 Kia Pregio 2006
Hyundai Starex 2002-2009 Kia Rio 2005-2010
Hyundai Terracan 2001-2006 Kia Sedona 2002-2011
Hyundai Tiburon 2002-2008 Kia Shuma 2001-2004
Hyundai Trajet XG 2000-2007 Kia Sorento 2002-2010
Hyundai Tucson 2005-2011 Kia Soul 2009-2010
Hyundai Tuscani 2002-2008 Kia Spectra 2001-2004
Hyundai Veloster 2011 Kia Sportage 2005-2010
Hyundai Veracruz 2007-2011 Kia Venga 2010
Hyundai Verna 2012 Kia Visto 2000-2004

Mechanical keys with RFID chip (non-proximity)

Image Unavailable

Key coding procedure is available in control unit IMMO – Immobilizer from “ECU Programming/Coding” menu.

Teaching

Image Unavailable

Engine must be turned off. Key is turned to ON position.

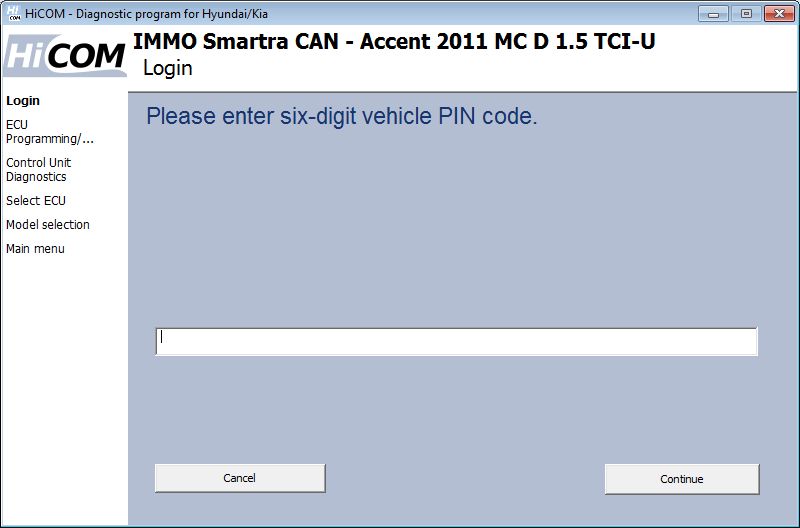

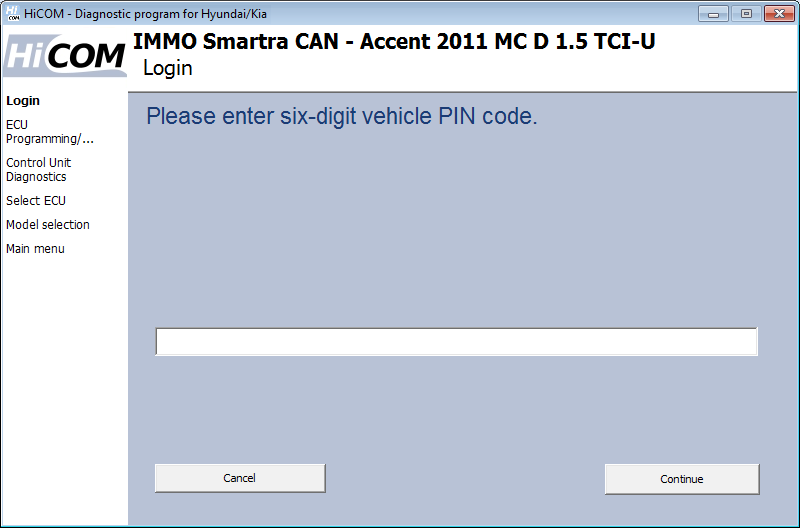

You will be prompted to enter a 6-digit PIN code. (eg 123456, see page 2 - PIN codes)

Image Unavailable

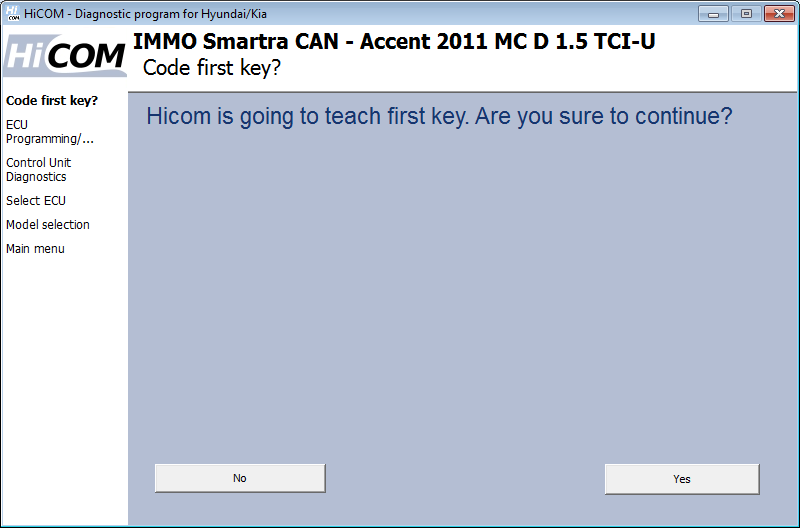

Now you have the key in ignition in the ON position. This key is coded after clicking on "Yes" button.

Image Unavailable

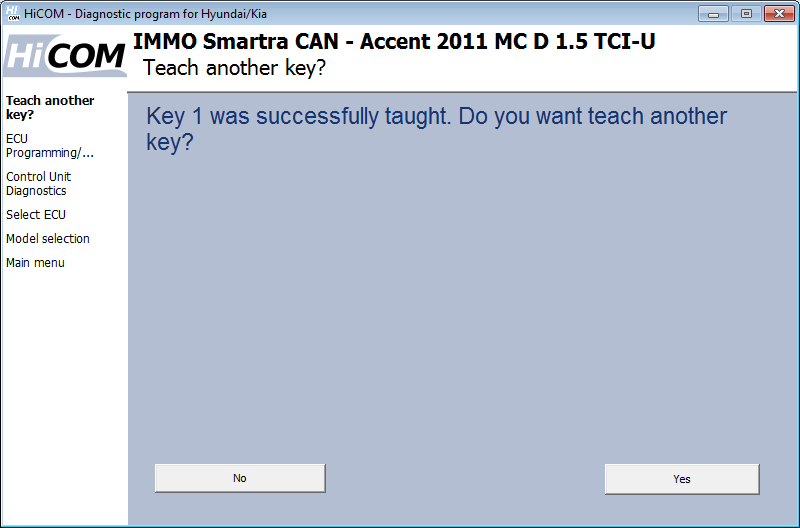

You will be prompted whether you want to code another key. If you click "yes", HiCOM will ask you to insert the next key. Up to 4 keys can be coded.(some control units allow units up to 8 keys). If you click on "No", the coding process is terminated and no more keys are added.

Image Unavailable

After successful completion of the operation, switch off the ignition for 10 seconds.

Smart key (Proximity remote)

Image Unavailable

Some vehicles have contact-less (RFID) smart-key instead of mechanical key. On these vehicles coding via SMARTRA operation will fail, it is necessary to use special dedicated smart-key control unit for this purpose. The feature can be found in Smart Key Code Saving control unit (PIC, SMKCODE).

Used smart keys cannot be programmed to another car. Please make sure you are purchasing smart keys from a trusted source.

When no valid smart key is present it is not possible to start engine and also it might be not possible to diagnose other ECUs than PIC/SMK.

Teaching

Image Unavailable

Engine must be turned off, start/stop pushbutton in OFF state.

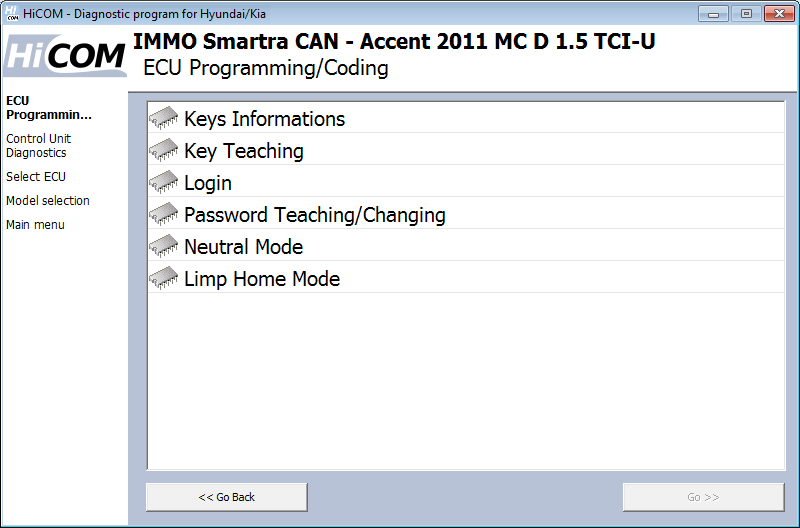

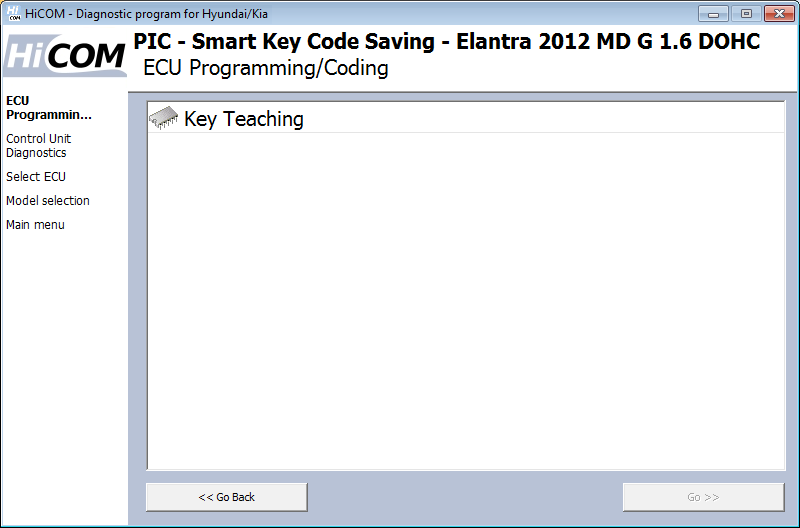

Select "Key Teaching" feature in "ECU Programming/Coding" menu.

Image Unavailable

You will be prompted to enter a 6-digit PIN code. (eg 123456, see page 2 - PIN codes)

If you enter incorrect pin code, the ECU will lock after 2 or 3 attempts.

After this step MSL teaching starts automatically on some ECUs.

Image Unavailable

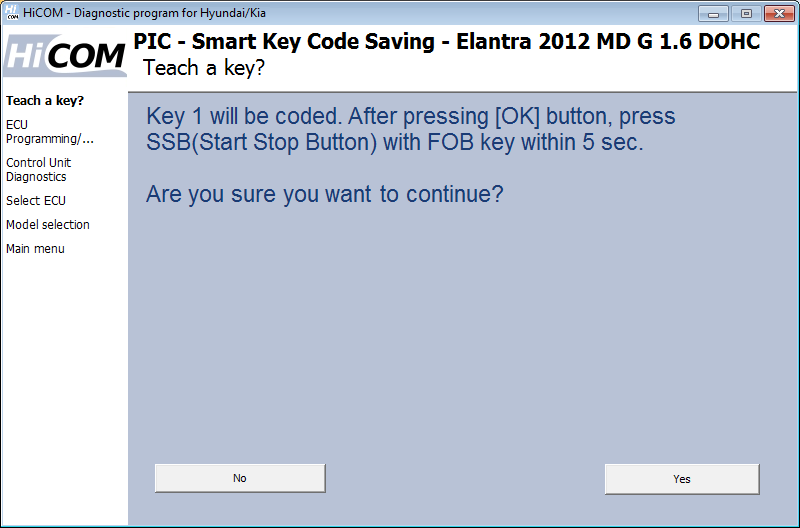

Key fob must be inserted into the Smart key holder (if there is no smart key holder, use tip of the remote to push start/stop button)

Hold Stop Start Button for 5 seconds with key in smart key holder. If your car does not have smart key holder, please use tip of the remote to push start/stop button.

The same operation will be performed for other of smart key fobs. Maximum of 2 Smart keys can be recoded.

Image Unavailable

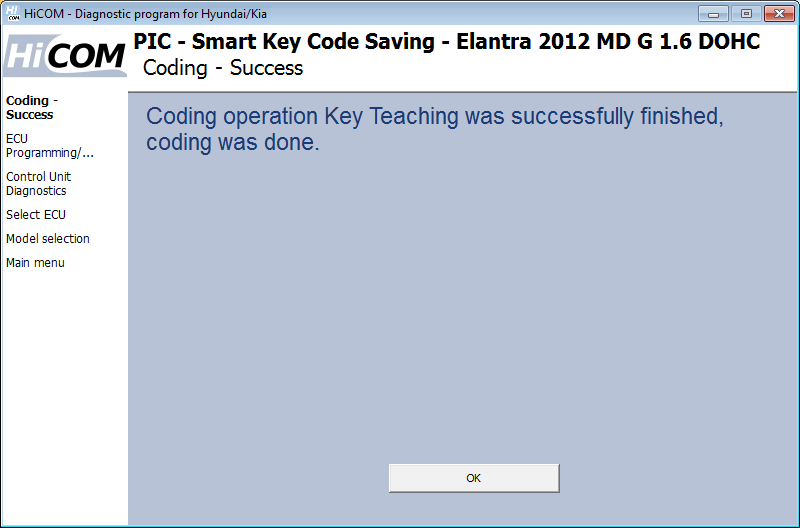

After coding operation is complete, HiCOM displays information about successful coding.

Key information

Image Unavailable

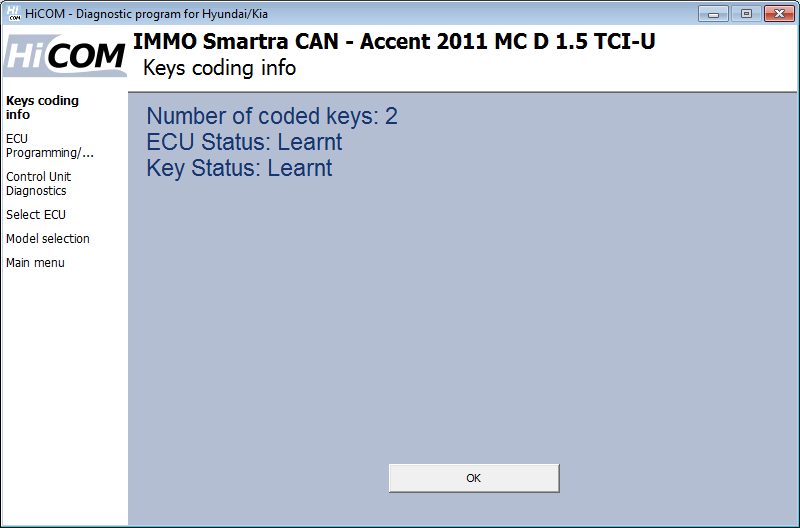

Shows basic info about keys. Possible values: Not checked, Learnt, Virgin, Neutral, Locked

Login

Image Unavailable

This feature is used to test of PIN correctness.

Password Teaching/Changing

Image Unavailable

The password is used to switch the car into Limp mode.

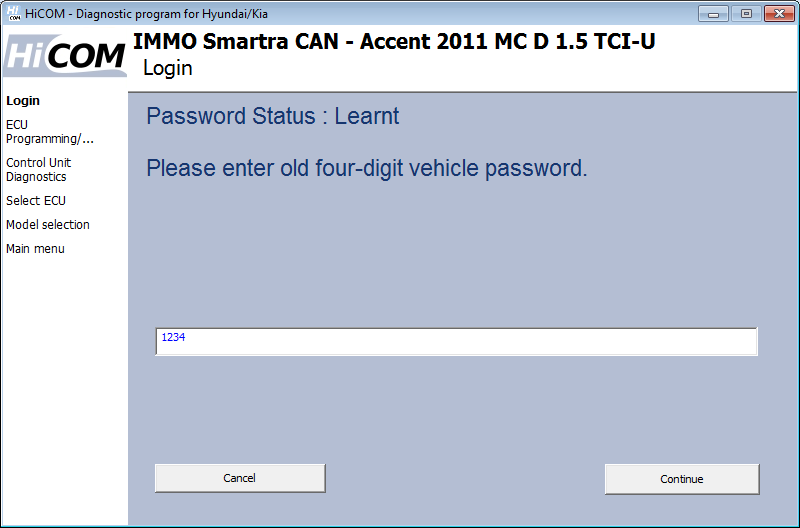

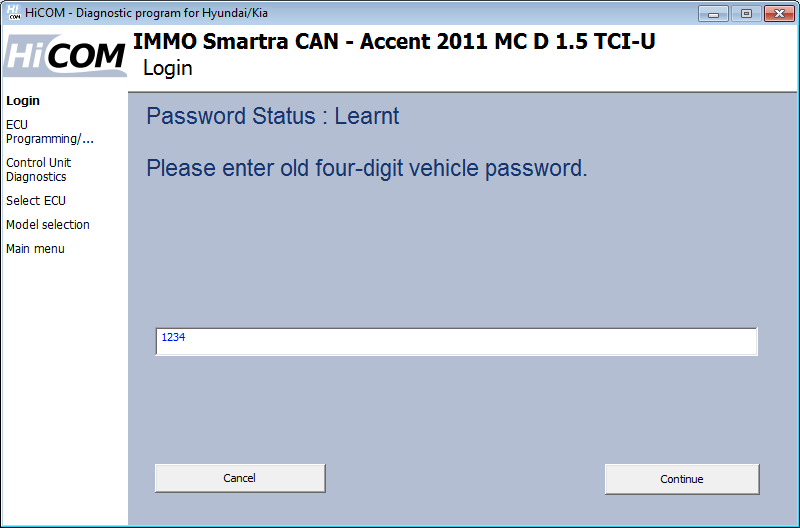

You will be prompted to enter password, if the control unit is not a "Virgin". The password is numeric, consisting of 4 decimal digits (eg 1234). Regarding the Virgin control unit, you are directly prompted to set a password.

Image Unavailable

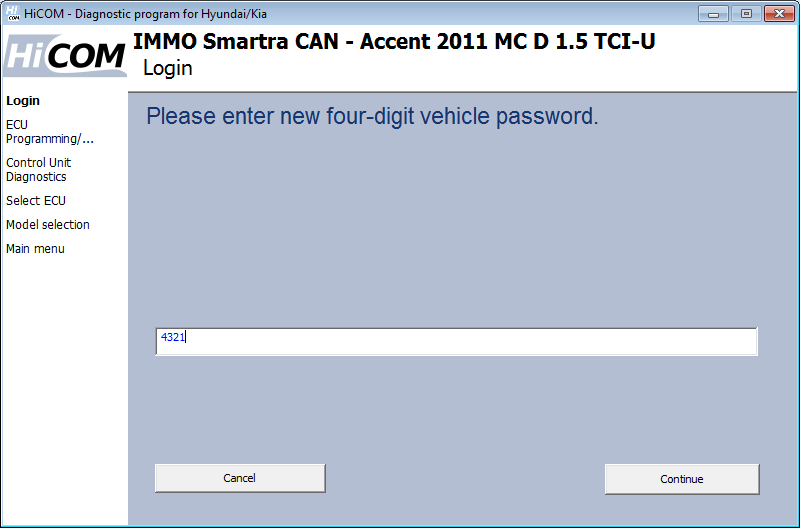

Now enter a new password. The password must consist of four-digit decimal number (eg 1234). After pressing the "Continue" button the password is set in the control unit.

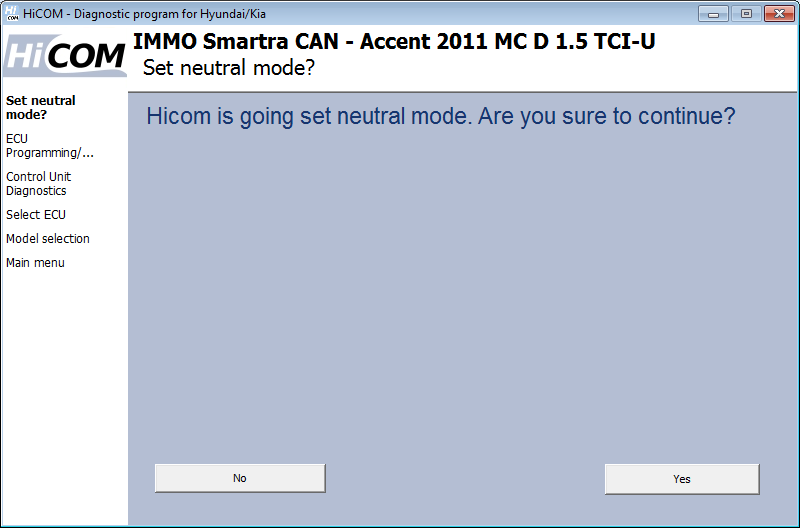

Neutral mode

This function serves to use already used ECU in another vehicle.
Engine must be turned off. Key is turned to ON position.

Image Unavailable
Image Unavailable

Limp Home Mode

This function switches the car into emergency mode that is used to drive the car to workshop in case of all keys are lost or SMARTRA module is not working properly.

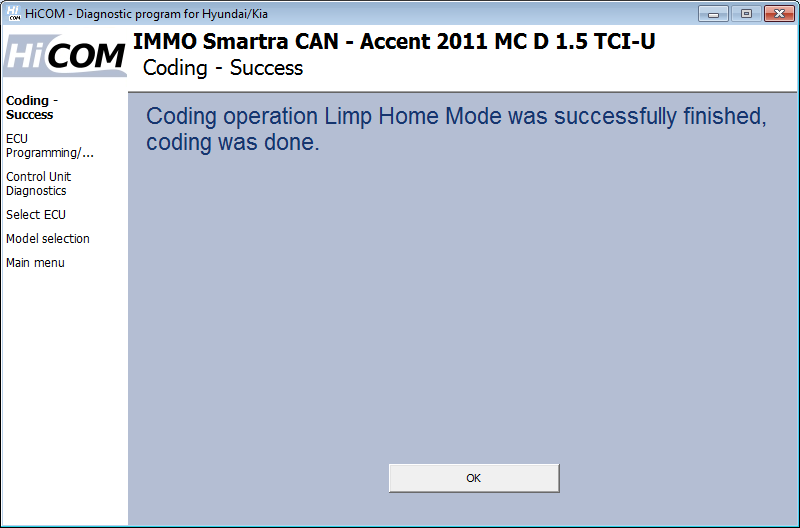

The ECM informs the driver about the limp home condition by 5 times blinking for 5 second. Then the user password can be sent to the ECM by HiCOM. The limp home can be activated also by the ignition key. The ECM informs the driver by blinking immobilizer lamp about the limp home condition. Then the input of user password to ECM can be done by special sequence of ignition on/off.

  • Password must be set up first (using "Teaching Password/Changing" feature)
  • Engine must be turned off. Key is turned to ON position.
  • Type four-digit decimal number (password), eg 1234.
Image Unavailable
Image Unavailable
