PATS Introduction

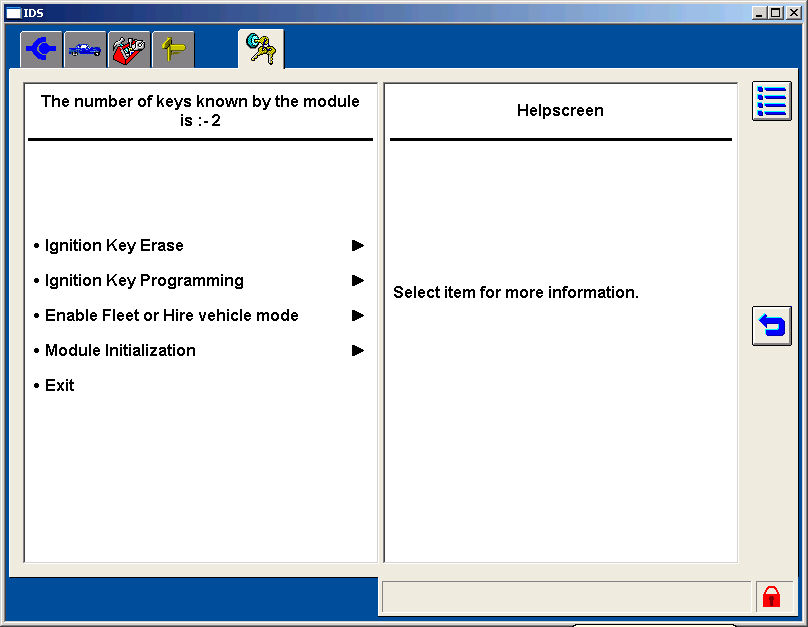

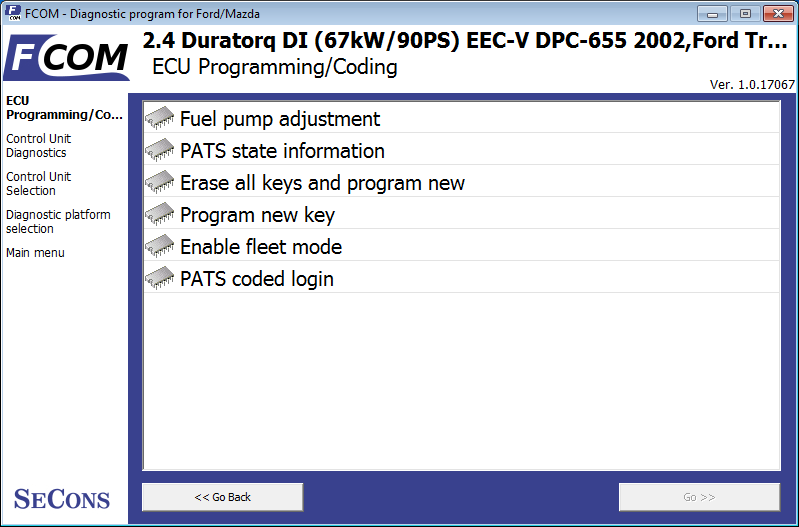

PATS functions are available in diagnostic session for PCM and IPC ECUs in programming/coding menu. For users familiar with Ford IDS diagnostics we have included screenshots of Ford IDS for comparison.

Image Unavailable
Image Unavailable

LED-indicator of PATS status

Ignition LED Description
OFF Short flashing Stand-by mode, PATS works
ON Lights 4 seconds and turns off Inserted and correctly identified key
ON Fast flashing Wrong key, anti-scan mode is activated
ON On Waiting for coding keys

When Anti-scan mode is activated, you must wait at least 30 seconds before any operations with PATS.

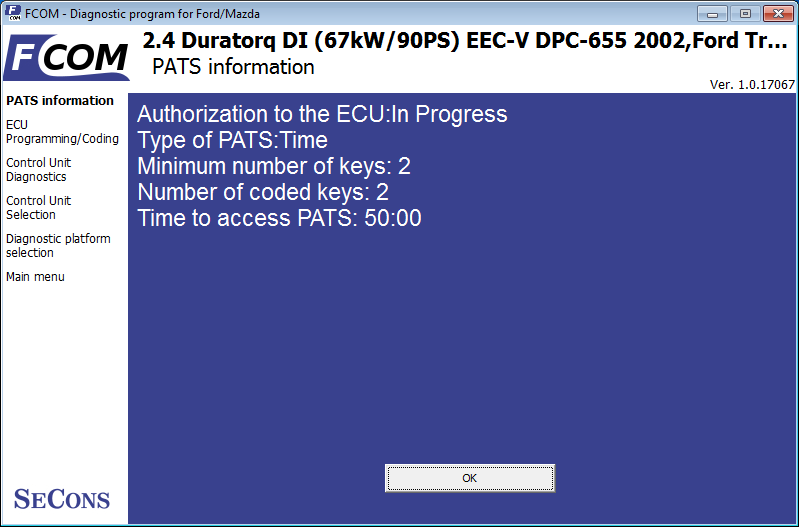

Information about PATS state

Image Unavailable

This function displays all important information about PATS system and its state. Ford IDS doesn't provide this function.

Authorization
Informs, whether secure access is permitted or forbidden (PATS operations are allowed).

PATS types

Timed: Delay of approx. 10 minutes is required before coding

Coded: Requires challenge-response INCODE/OUTCODE authorization (you can obtain INCODEs using http://www.patscode.com/ or through Ford ETIS service)

Minimum number of keys: Minimum number of programmed keys required for correct function of PATS (car won't start if less then required number of keys is programmed).

Number of coded keys: Current number of programmed keys. Number should be equal to or greater than previous value, in other case trouble codes will appear fault code memory.

It is very important to have correct type of transponder for every model and minimal number of keys.

PATS unlocking

Before any operation with PATS you have to get access to PATS ECU.

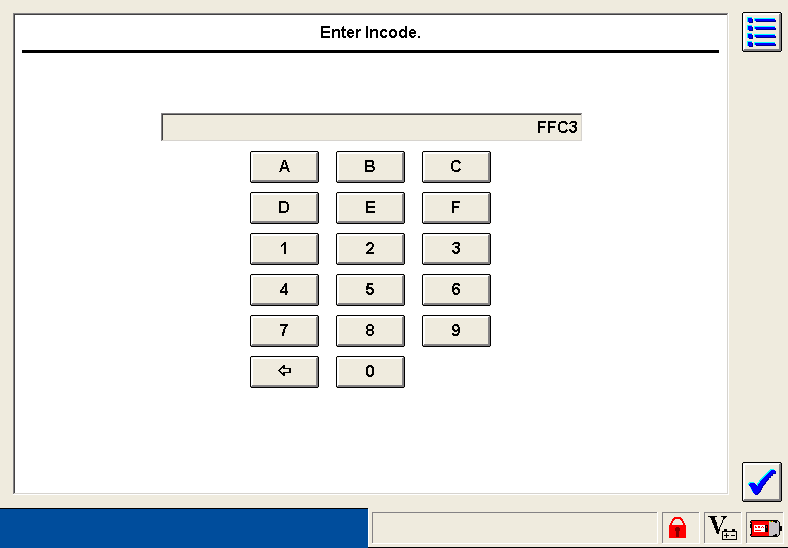

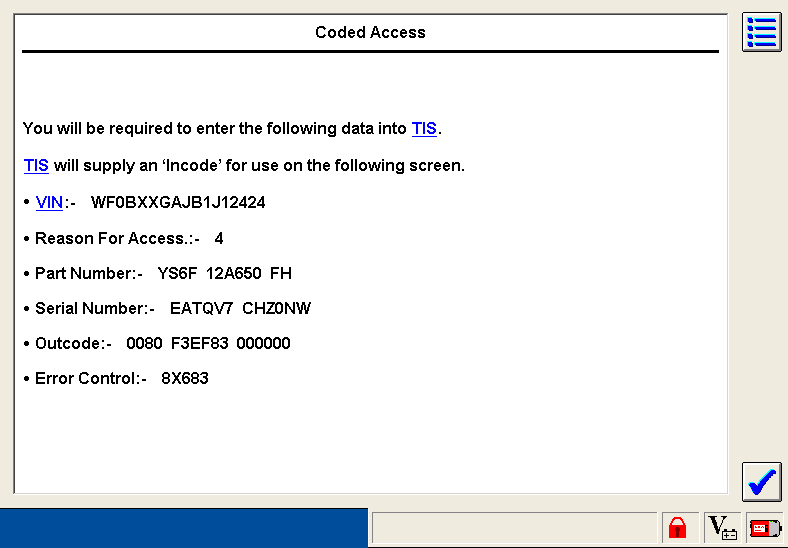

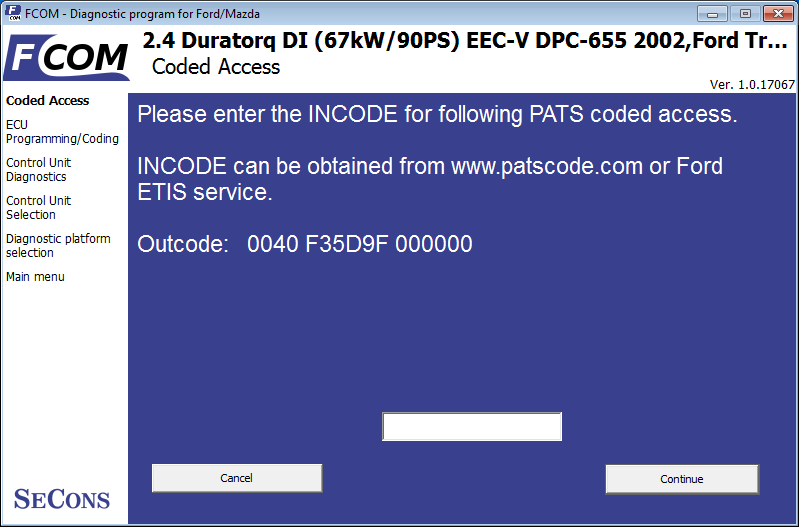

In coding access you see window asking for OUTCODE/INCODE.

Image Unavailable
Image Unavailable
Image Unavailable

The coded PATS generates a so-called OUTCODE, which requires a so-called INCODE, which is dependent on a specific vehicle and generated OUTCODE.

PATS unlocking is performed before any operation automatically, you do not have to use FCOM “PATS Login” function. The PATS Login is used only for test purposes (to verify correctness of incode) and some special operations.
For each OUTCODE, which control unit generates, is necessary to get a unique INCODE. Using one and the same INCODE during more operations with PATS is not possible.

INCODE can be obtained at http://www.patscode.com/ or using Ford ETIS service.
Please note that PATSCode.com service doesn't support yet a 2011+ Ford Mondeo/S-Max/Galaxy/Focus and C-Max vehicles that use different system. For such vehicles you need to obtain the INCODE using other source such as Ford ETIS.

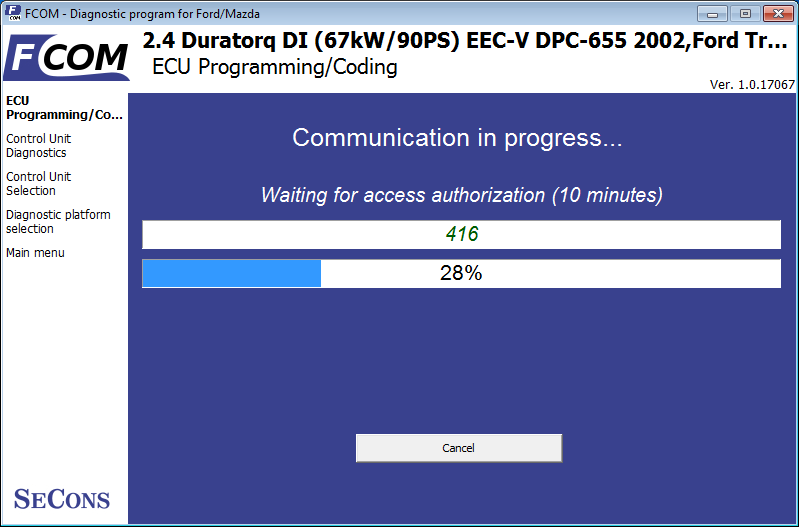

Timed PATS starts the countdown automatically. Program cannot speed-up the countdown, it fully depends on the control unit.

Image Unavailable


You can cancel the running countdown by clicking on Cancel button. While FCOM is waiting for control unit to unlock, it communicates with control unit and therefore ignition has to be switched ON.

A dialog waiting for the completion of the operation (programming, clearing, etc.) is displayed afterwards. Operations are described in following chapters.

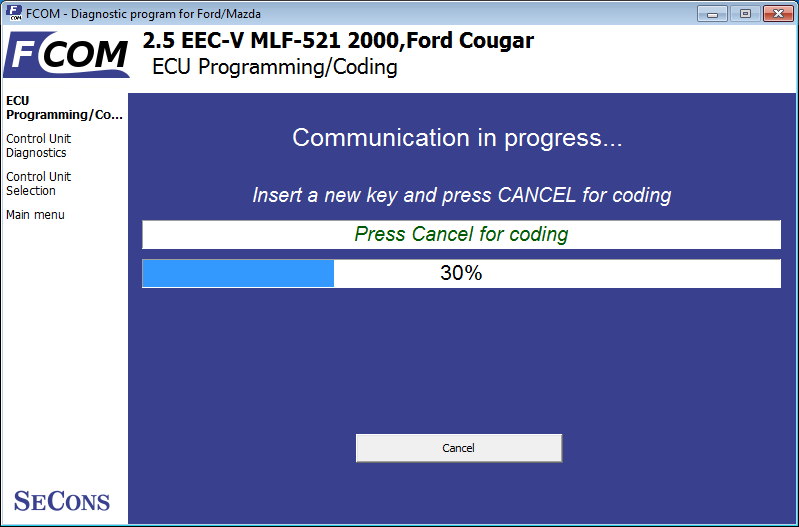

Then press Cancel button to start coding procedure. If you are changing key, ignition must not be switched off for more than 10 seconds.

Image Unavailable

Erase keys procedure

Clears all coded keys and programs 2 new keys.

  • Connect to PCM
  • Choose Erase all keys and program new
  • Login to PATS (see previous chapter)
  • Communication is in progress
  • After few minutes of waiting is showing the call for delete keys by pressing Cancel button. The control unit is now ready to perform deleting and coding a new keys. Pressing Cancel button is going to delete ALL keys and is necessary to coding a new one. The following procedure is intended for vehicles requiring min. 2 coded keys
  • Turn ignition OFF
  • Turn ignition ON (wait about 5 seconds), PATS LED is on
  • Turn ignition OFF and remove key
  • Insert the next key and turn the ignition ON (PATS LED off after about 5 seconds)
  • Turn OFF the ignition and wait 60 seconds
  • Check by PATS state information function if the keys was deleted and the new keys added (if the number of keys is 0 or 1, it is necessary to add the next key(s) by Program new key function)

As long as minimal number of keys required by PCM isn't programmed, engine may not start. Fault code memory will show error stating that less than minimum required keys is programmed.

If you fail to correctly program keys after running Erase keys procedure, you can try to add keys one-by-one using function "Program (add) a new key".

New key programming procedure

  • Connect to ECU that holds programmed keys (typ. PCM, IPC, BCM or RKE depending on model)
  • Click item Program new key
  • Log in to PATS (see previous chapter)
  • Once the information “After clicking Cancel, key will be programmed” appear, insert new key in to ignition OFF (if key have not been there yet) and switch to ON position
  • Click on Cancel button
  • New key will be programmed
  • Switch key to OFF or remove key
  • Check if operation was successful by function Information about PATS state

“Pairing” PATS Control Units

For vehicles that use multiple ECUs for PATS system (e.g. PCM and IPC, BCM RKE or SCIL), ECUs need to contain same vehicle security data. For this purpose FCOM provides “PATS Pairing” function, which is available coding menu of non-PCM ECU (IPC, BCM, SCIL or RKE). The function is available only on coded PATS.
PATS pairing requires obtaining two INCODE/OUTCODE pairs of both ECUs involved in PATS system.

PATS pairing function is now available also on UDS protocol.

Some vehicles have also ABS involved in PATS system. In that case to re-code changed ABS, it must be paired as well. ABS PATS pairing happens either during PCM - BCM (IPC) pairing, or there is a separate coding procedure available in BCM.

Supported multi-ECU PATS systems:

Make Model PATS ECU #2 PATS ECU #3
Ford Fiesta/Fusion (EU) 2002- IPC
Ford Fiesta/Fusion (EU) 2008- (UDS) IPC
Ford Transit 2006- (UDS) BCM
Ford Transit Connect 2007- IPC
Ford Mondeo/S-Max/Galaxy 2006- (UDS) BCM
Ford Focus/C-Max 2004-2010 IPC
Ford Focus/C-Max 2010- (UDS) BCM
Ford Explorer 2006- IPC
Ford F-150 2009- IPC
Mazda 3 2003-2008 IPC
Mazda CX7 IPC
Mazda 5 2007- RKE
Mazda 6 2008- (UDS) IPC

Common PATS fault codes

DTC Description
B1213
B10D8-00
Less than 2 (or 3 if equipped w/Valet key) keys programmed to the system.
B1232
B2103
B10D5-13
Transceiver internal antenna damaged. Replace transceiver.
B1342 ECU is defective (EEPROM in PCM is not working – replace PCM). PATS related when stored in PCM only.
B1600
B10D7-87
Non-PATS Key or damaged key.
B1601
B10D7-51
Unprogrammed encoded ignition key detected (leave ignition on for 20 seconds before trying a programmed key, in Anti-Scan Mode)
B1602
B10D7-8F
Particial detection of encoded ignition key.
B1681
B10D9-97
Transceiver signal not detected.
B2141
B10DA-5
Non-Volatile Memory (NVM) configuration failure – No PCM ID stored in PATS
B2139
U2510
B10DA-61
PCM ID does not match between the PCM and PATS control (PATS/ICM/VIC/HEC/SCIL).
B2431
B10D7-05
Key program failure (defective key or transceiver).
U1147
U1262
Communications issue, SCP (J1850), between PCM and PATS control (PATS/ICM/VIC/HEC/SCIL).
U1900
U0100
U2511
B2009
B10DA-96
Communications issue, CAN (J2284), between PCM and PATS control (ICM).
P1260 PCM disabled the vehicle because of a PATS concern. Retrieve DTCs from applicable PATS control function (PATS/ICM/VIC/HEC/SCIL).
P1622 PCM disabled the vehicle because of incorrect challenge response. Retrieve DTCs from applicable PATS control function (PATS/ICM/VIC/HEC/SCIL).
P1602 PCM disabled the vehicle because of a communication issue with control module. Retrieve DTCs from applicable PATS control function (PATS/ICM/VIC/HEC/SCIL).

Problems not related to PATS

  • The “Service Engine Soon” light is illuminated. (Investigate PCM system)
  • There is no communication with PCM: PCM will always communicate on the diagnostic link regardless of theft status. (Investigate PCM system)
  • Engine stalls on road: Once the engine runs for one second, PATS CANNOT disable the engine. Running stalls are not PATS related issues.
  • Remote Entry/Keyless Entry problems: PATS is completely separate from the Remote Entry/Keyless Entry systems.
  • There is a no-crank problem on vehicles without PATS Starter disable. Check chart, on reverse side, for presence of Starter Interrupt.
  • PATS Theft Indicator flashes every 2 seconds at Ignition OFF. This is normal operation for PATS to act as a visual theft deterrent. See chart on reverse side for applicable system.
  • PATS Theft Indicator stays on for 2 or 3 seconds (depending on system type) at Ignition RUN or START and then off: This is normal operation for PATS prove out on all vehicles except LS and Thunderbird.

PATS system types

A&B: Stand Alone Module (PATS)

C: Instrument Cluster
- Virtual Image Cluster (VIC)
- Hybrid Electronic Cluster (HEC)
- Instrument Cluster Module (ICM)

D: Steering Column Ignition Lock Module (SCIL)

E: Powertrain Control Module (PCM)

F: Powertrain Control Module (PCM)

G: Instrument Cluster Module (ICM)

Type of transceivers (active antennas)

  • small Ford
  • small Valeo (only transceiver, Ford Galaxy, engine Duratec)
  • big Valeo (Ford Galaxy 1.9 Tdi VW)
